A tapered roller bearing is a high-capacity bearing designed with conical rollers to manage simultaneous heavy radial and axial (thrust) loads.
Taper Roller Bearings (Metric & Inch)
Roller Bearings
Taper Roller Bearings (Metric & Inch)

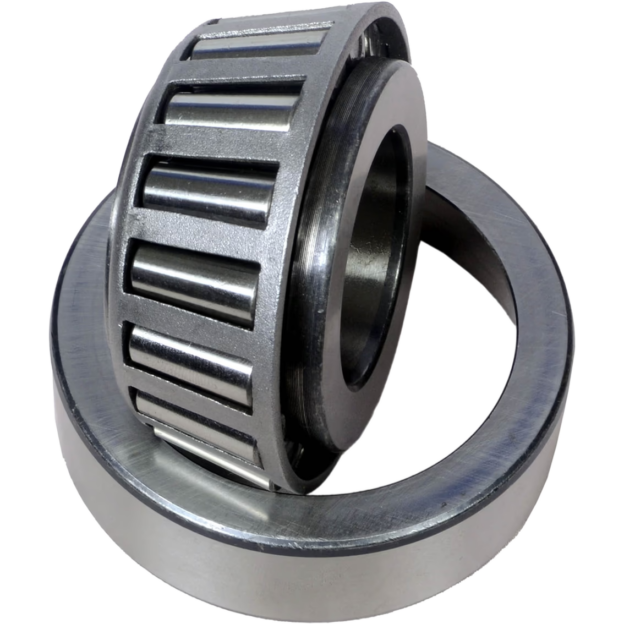

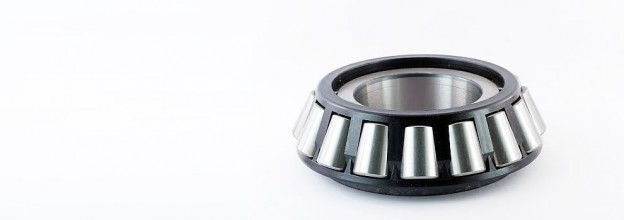

Tapered roller bearings are among the most versatile and widely used rolling bearings in industrial applications. Their unique geometry, featuring conical rollers and conical raceways, enables them to accommodate both high radial and high axial (thrust) loads in one direction simultaneously. The tapered shape creates an intersection point of the cones along the bearing axis, which ensures pure rolling motion and minimizes internal sliding. This design makes tapered roller bearings ideal for applications such as vehicle wheel hubs, gearboxes, conveyor systems, and heavy industrial machinery where combined loads occur and reliability is paramount.
Separable and interchangeable
Tapered roller bearings are separable, meaning the inner ring with roller assembly (cone) and the outer ring (cup) can be mounted independently. This allows for easy installation, adjustment of bearing clearance, and replacement of individual components without replacing the entire bearing – ideal for serviceability and cost-effective repairs.
Optimised rolling motion
The conical geometry of the rollers and raceways is precisely engineered so that the apexes of the cones meet along the bearing axis. This ensures pure rolling motion without skidding, reducing internal wear, lowering operating temperatures, and improving overall bearing efficiency throughout its service life.
